Highvolume.
Tenderedquality.
Value-tier road light for tendered volume — Lumileds 3030 2D, > 195 lm/W LED, 60,000-hour rated life.
Value, by the kilometre.
The value-tier road light is engineered for programmes priced by the kilometre — society rollouts, secondary roads, residential streets where the budget is real and the spec still has to hold. The Lumileds Luxeon 3030 2D engine pulls more than 195 lumens per watt from the package. Programmable constant-current driver, NEMA socket optional. Sixty-thousand-hour rated life. The lower-cost answer that still meets the brief.
The headline figures that put Econo Series on tendered municipal projects.
- 25K lm Peak output
- 195 lm/W LED efficacy
- 60K hrs Rated life
- 140 lm/W System efficacy
The completespecification.
01Electrical
- Wattage package
- 60 W · 90 W · 120 W · 150 W · 180 W
- Range available
- 35 W – 240 W on request
- LED driver
- SUNCOM
- Driver type
- Constant Current · Constant Current Programmable
- Voltage range
- 100 – 277 V · 50 / 60 Hz
- Power factor
- ≥ 0.95 nominal
- Drive current
- 100 mA – 700 mA
- Surge protection
- 10 kV dedicated SPD
02Light
- Lumen package
- >8,400 · >12,600 · >16,800 · >21,000 · >25,200 lm
- Lumen range
- 4,900 – 35,000 lm available
- System efficacy
- > 140 lm/W · 130 lm/W
- LED efficiency
- > 195 lm/W · > 170 lm/W
- Light Output Ratio
- ≥ 85%
- Light source
- Lumileds Luxeon 3030 2D / TYF SMD 3030
- CRI
- ≥ 70
- Beam angle
- Type II M 90° × 150° (other types available)
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- > 60,000 hours
- Photometric data
- IES / LDT files available
03Environmental
- Mounting
- 48 – 60 mm pole, side entry
- Mounting height
- 6 – 8 m / 8 – 10 m / 10 – 12 m / 10 – 14 m
- Working temp.
- −40 °C to 55 °C
- Wind survival
- Up to 150 km/h
- Humidity
- Up to 95% RH
04Mechanical
- Weight
- 4 / 5 / 7 / 9 kg by SKU
- Housing
- High pressure die-cast aluminium
- Gasket
- Heat-resistant silicone rubber
- Front cover
- Tempered glass
- Finish
- Corrosion-resistant powder coating
- Certifications
- CE LVD & CE EMC
- Classification
- IP66 / IK08
Specified for volumepriced by the kilometre.
- LED
- Lumileds 3030 2D
- Efficacy
- ≥ 140 lm/W
- Source
- > 195 lm/W
- Lifetime
- 60,000 hrs
- Wind
- 150 km/h
- Ingress
- IP66 / IK08
Econo Series in the field
- 01

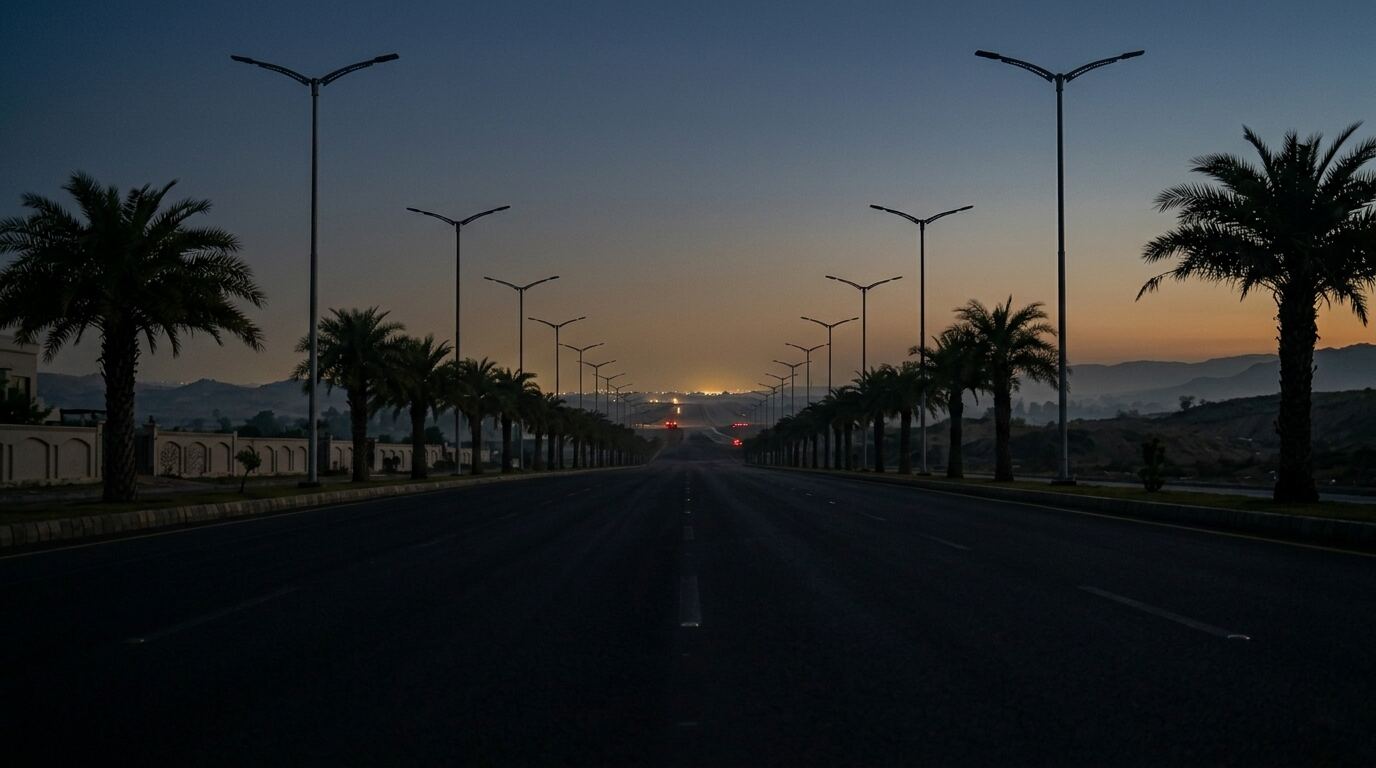

Society streets
Volume rollouts in housing schemes.
- 02

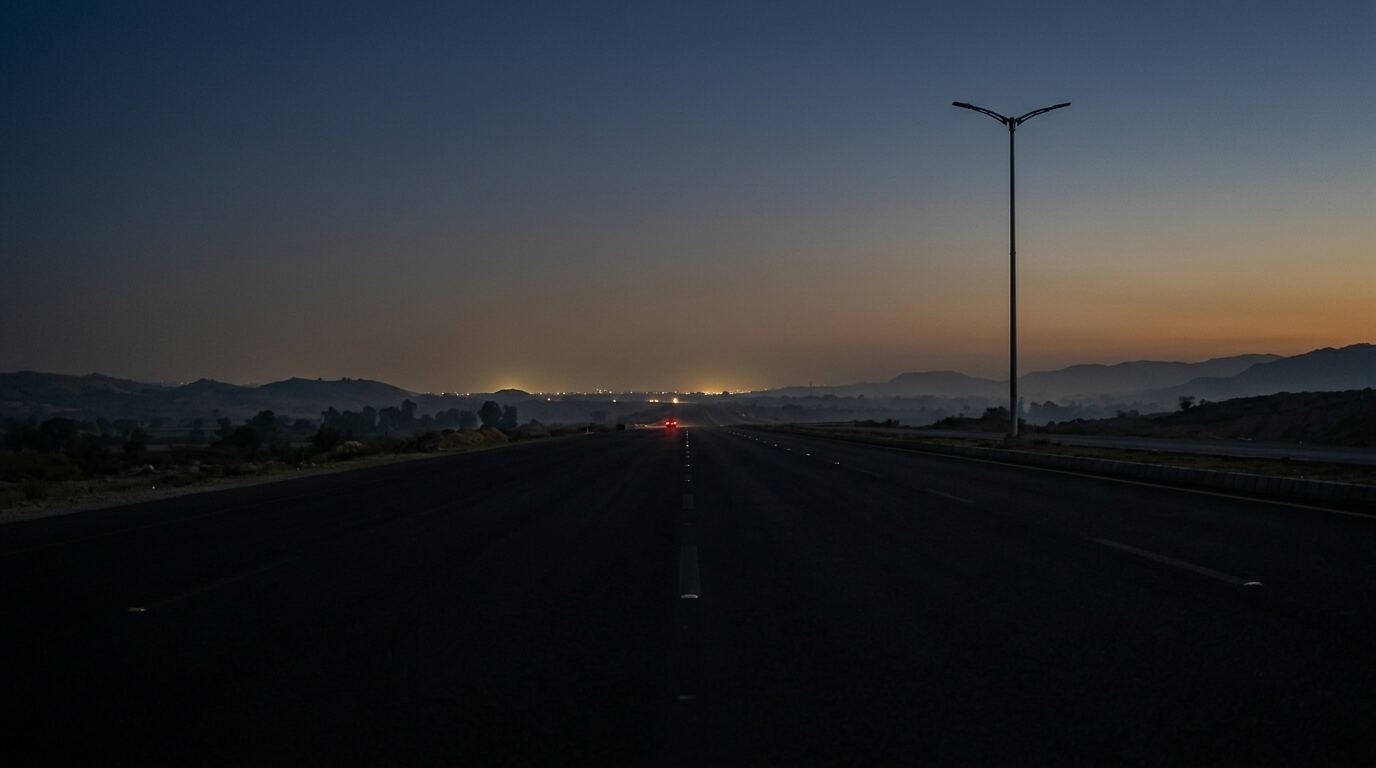

Residential roads
Street-by-street tendered builds.
- 03

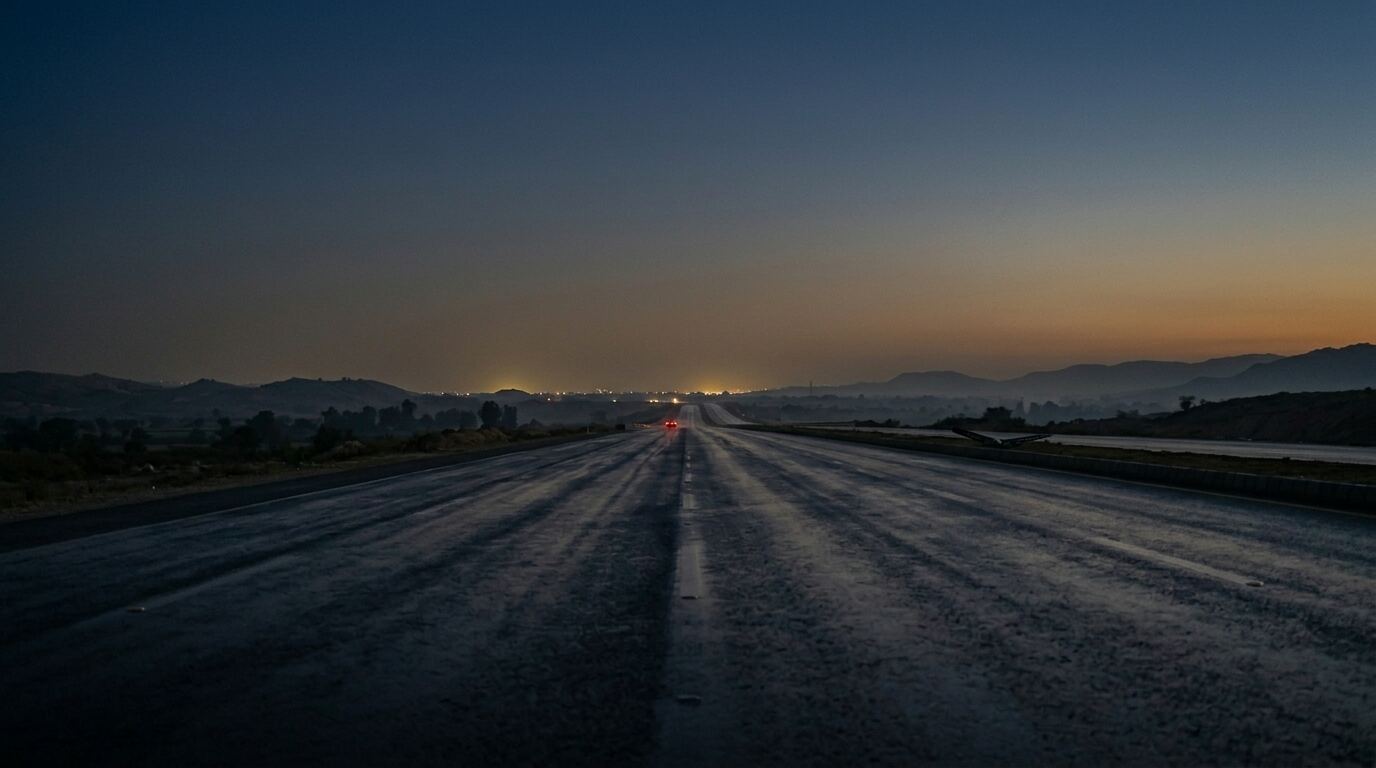

Secondary arterials
District roads, town interiors.
- 04
Government tenders
Programmes priced for kilometre delivery.
60180W
The range of Econo Series, by application.
- 0160 W
Residential streets, society interiors
- 0290 W
Secondary roads, society arterials
- 03120 W
Major society streets, town centres
- 04150 W
Urban arterials, district roads
- 05180 W
Highways, regional connectors
