Pakistan’sroad,litintelligently.
Flagship smart road light. Lumileds 3030 2D, programmable dimming, NEMA control, IES files available.
Engineered for the highway.
Fusion X is the streetlight specified where light matters most — motorways, expressways, the corridors that move a country. Lumileds 3030 2D engines put up to 220 lumens of light on every watt drawn. The programmable driver lets the operator step output by hour. The die-cast housing survives 120,000 hours and 150 km/h winds. And the NEMA socket leaves room for tomorrow’s controller — whatever the standard becomes.
The headline figures that put Fusion X on tendered municipal projects.
- 120K hrs Rated lifetime
- 220 lm/W LED efficacy
- 25K lm Peak output
- 150 km/h Wind survival
The completespecification.
01Electrical
- Wattage package
- 60 W · 90 W · 120 W · 150 W · 180 W
- Range available
- 30 W – 240 W on request
- LED driver
- Vossloh-Schwabe · Philips Xitanium · Suncome
- Driver type
- Constant Current · Constant Current Programmable
- Voltage range
- 100 – 277 V · 50 / 60 Hz
- Power factor
- ≥ 0.95 nominal
- Drive current
- 100 mA – 700 mA
- Surge protection
- 10 kV / 20 kV dedicated SPD
02Light
- Lumen package
- >8,400 · >12,600 · >16,800 · >21,000 · >25,200 lm
- Lumen range
- 4,300 – 35,000 lm available
- System efficacy
- > 155 lm/W
- LED efficiency
- > 220 lm/W
- Light Output Ratio
- ≥ 85%
- Light source
- Lumileds Luxeon 3030 2D / TYF 3030
- CRI
- ≥ 70
- Beam angle
- Type II M 90° × 150° (other types available)
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- 120,000 hours
- Photometric data
- IES / LDT files available
03Environmental
- Mounting
- 48 – 60 mm pole, side entry
- Mounting height
- 6 – 8 m / 8 – 10 m / 10 – 12 m / 10 – 14 m
- Working temp.
- −40 °C to 55 °C
- Wind survival
- Up to 150 km/h
- Humidity
- Up to 95% RH
04Mechanical
- Dimensions (L × W) mm
- 555×214 · 555×244 · 696×265 · 708×309
- Height (H) mm
- 118 · 118 · 126 · 107
- Weight
- 4 / 5 / 7 / 9 kg by SKU
- Housing
- High pressure die-cast aluminium
- Gasket
- Heat-resistant silicone rubber
- Front cover
- Tempered glass
- Finish
- Corrosion-resistant powder coating
- Certifications
- CE LVD & CE EMC
- Classification
- IP66 / IK08
Where the highway runsFusion X lights the way.
- LED
- Lumileds 3030 2D
- Efficacy
- > 155 lm/W
- Lifetime
- 120,000 hrs
- Surge
- 10 / 20 kV
- Wind
- 150 km/h
- Ingress
- IP66 / IK08
Fusion X in the field
- 01

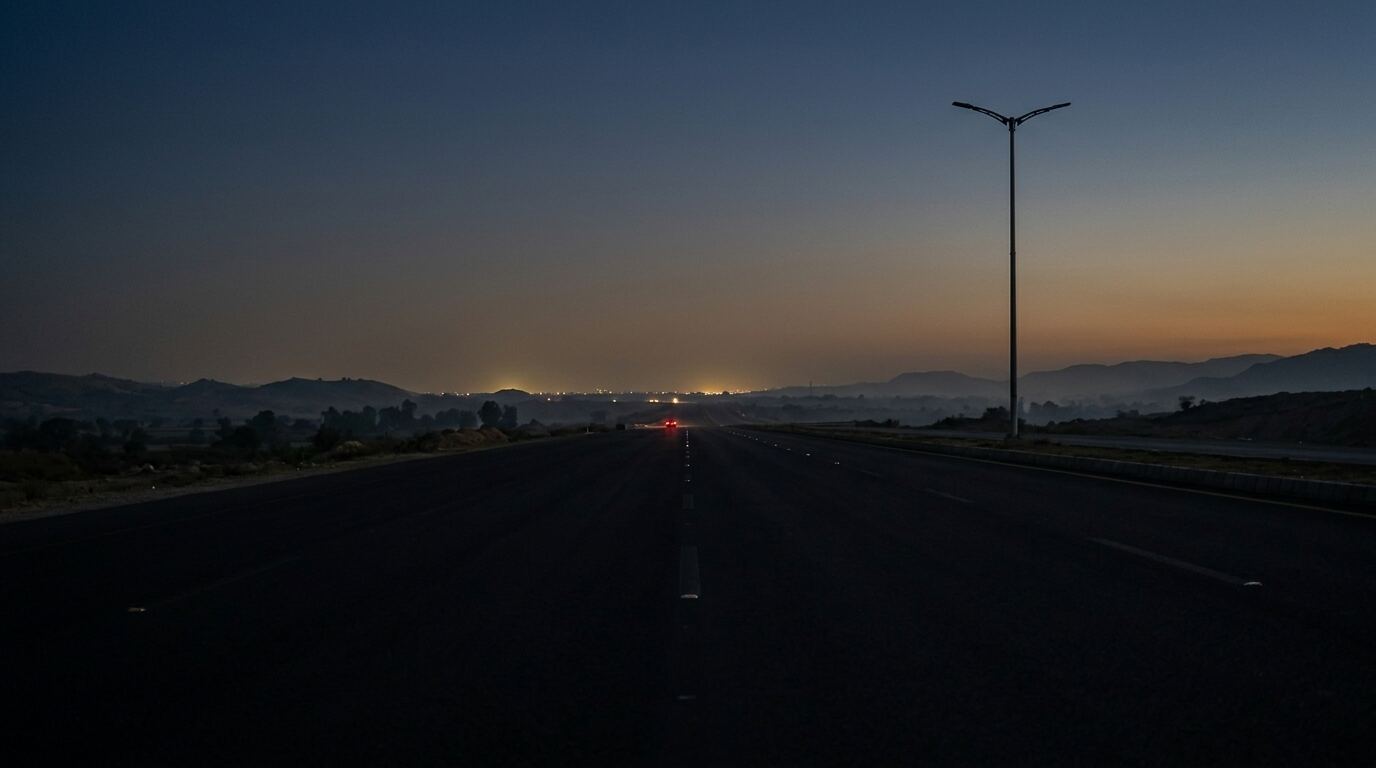

Motorways
Where every metre of pole earns its place.
- 02

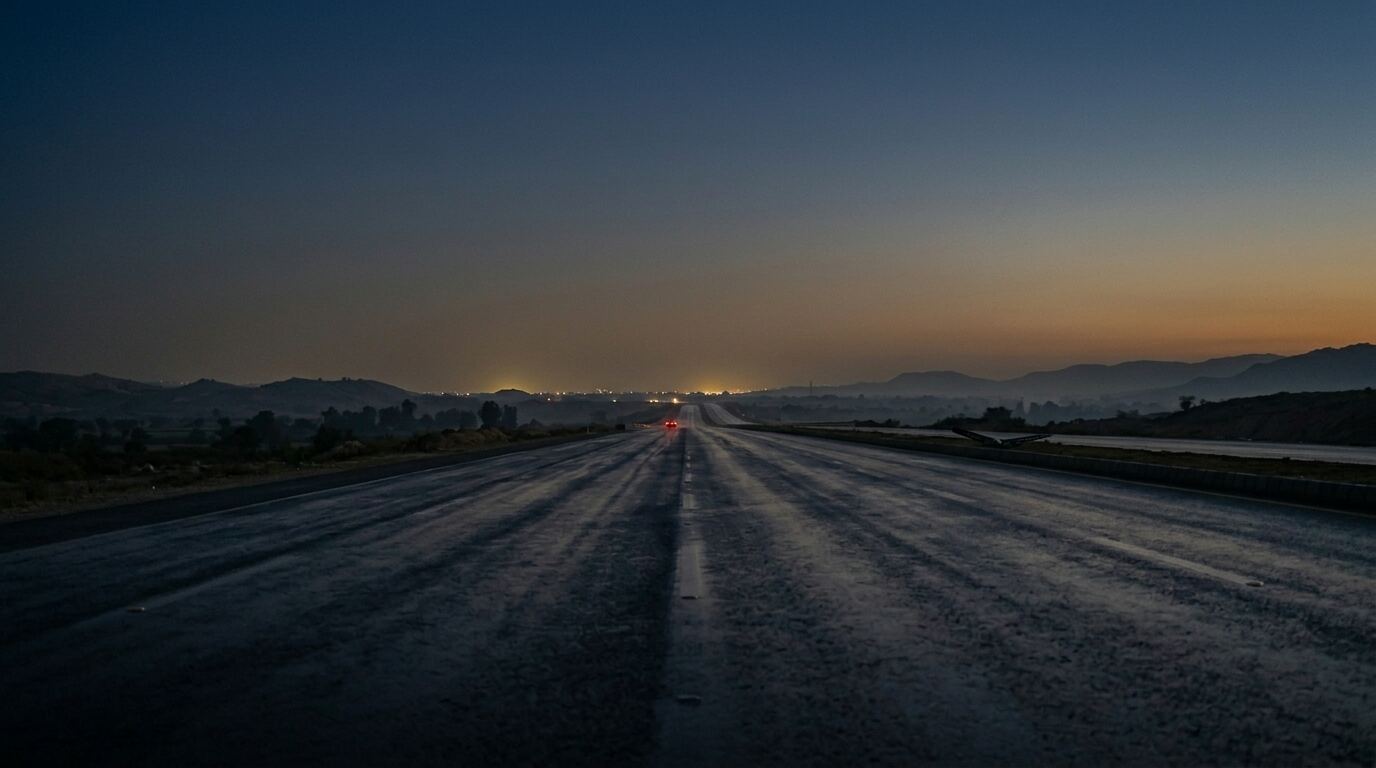

Major arterials
Six-lane bandwidth, sodium-replacement light.
- 03
Bridges & flyovers
Above the road, above the noise.
- 04

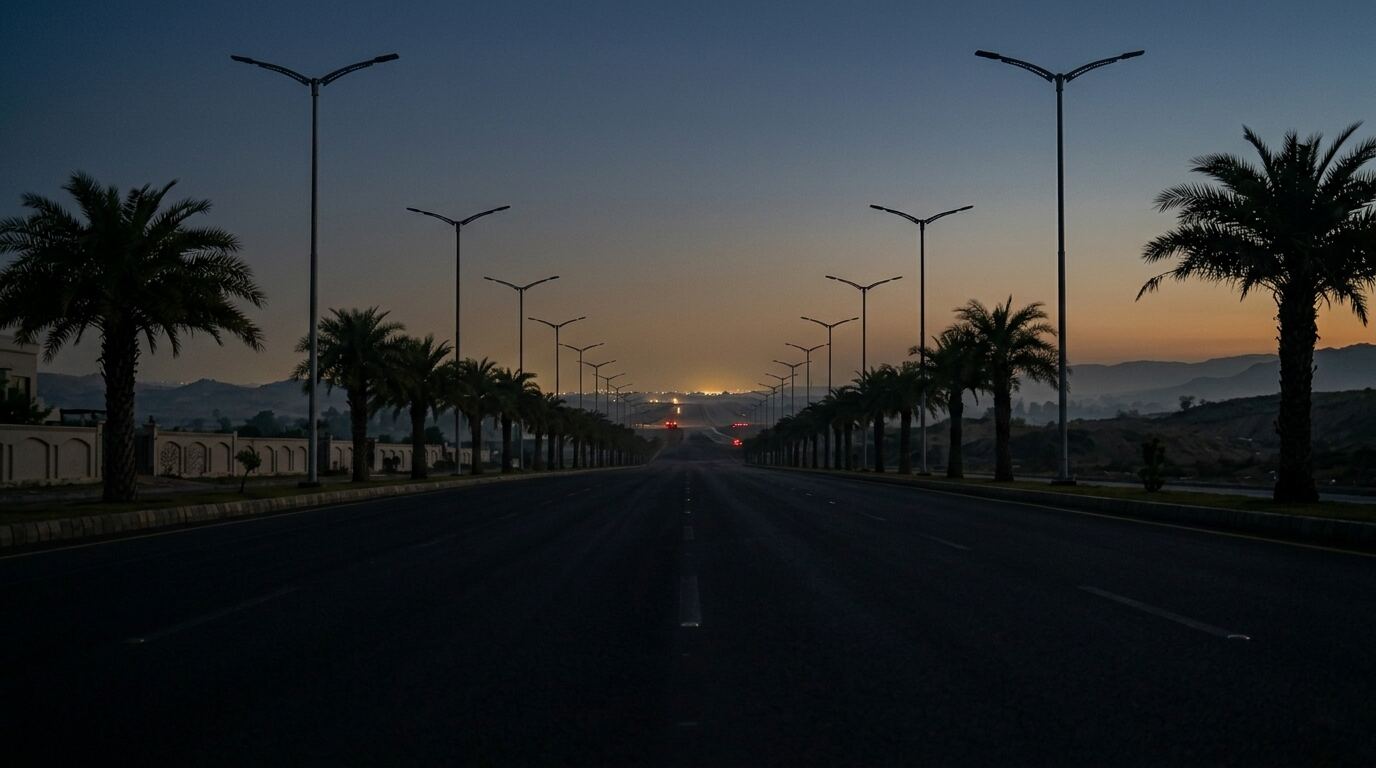

Residential roads
Right-sized output for streets that sleep.
60180W
The range of Fusion X, by application.
- 0160 W
Residential streets, society interiors
- 0290 W
Secondary roads, society arterials
- 03120 W
Major roads, urban arterials
- 04150 W
Highways, expressways, flyovers
- 05180 W
Motorways, top-tier infrastructure
