Off-grid.
Onstandard.

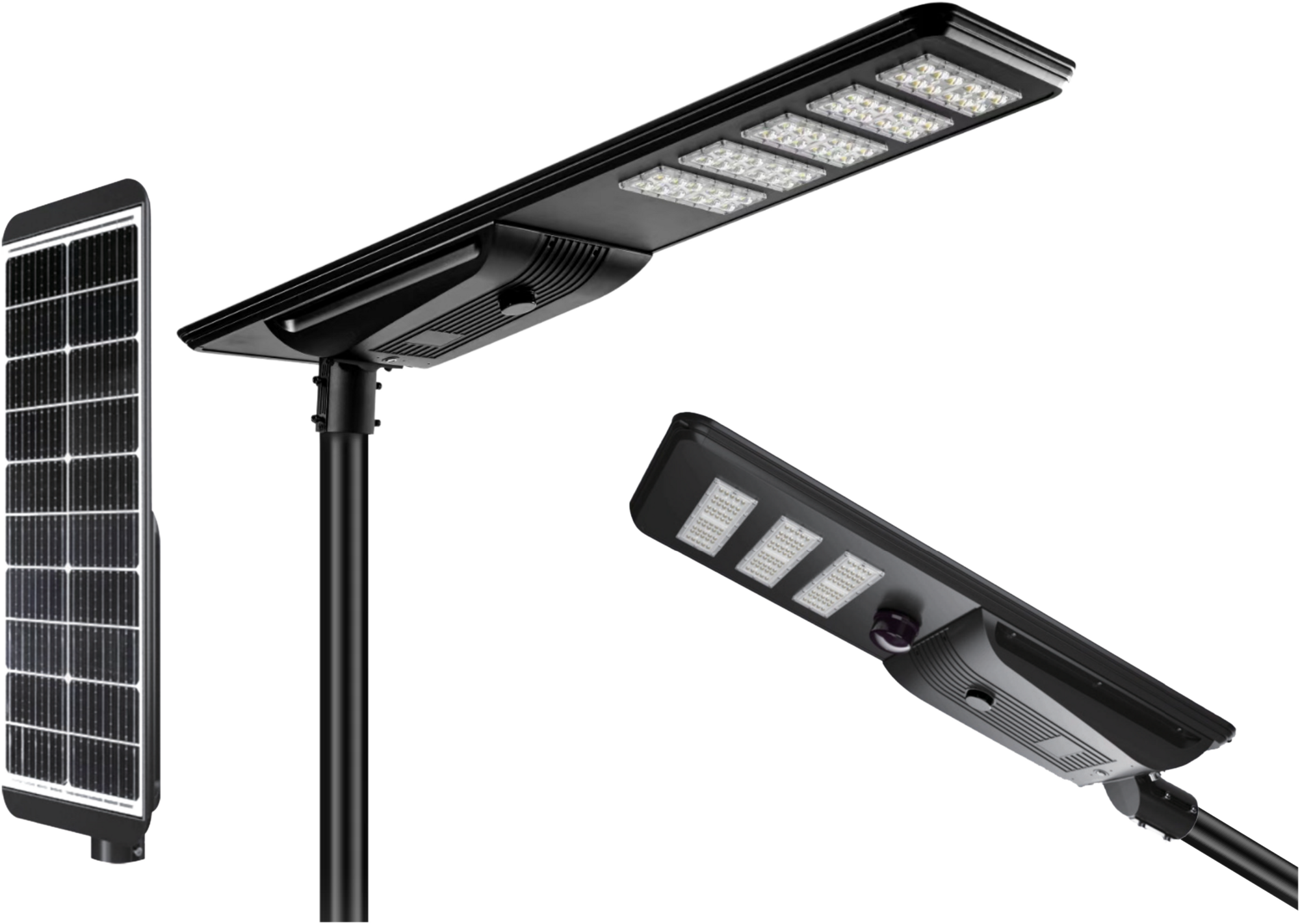

Split-type and all-in-two solar street lights. LiFePO4 batteries, MPPT charging, optional IoT.
Where the grid ends — Integron begins.

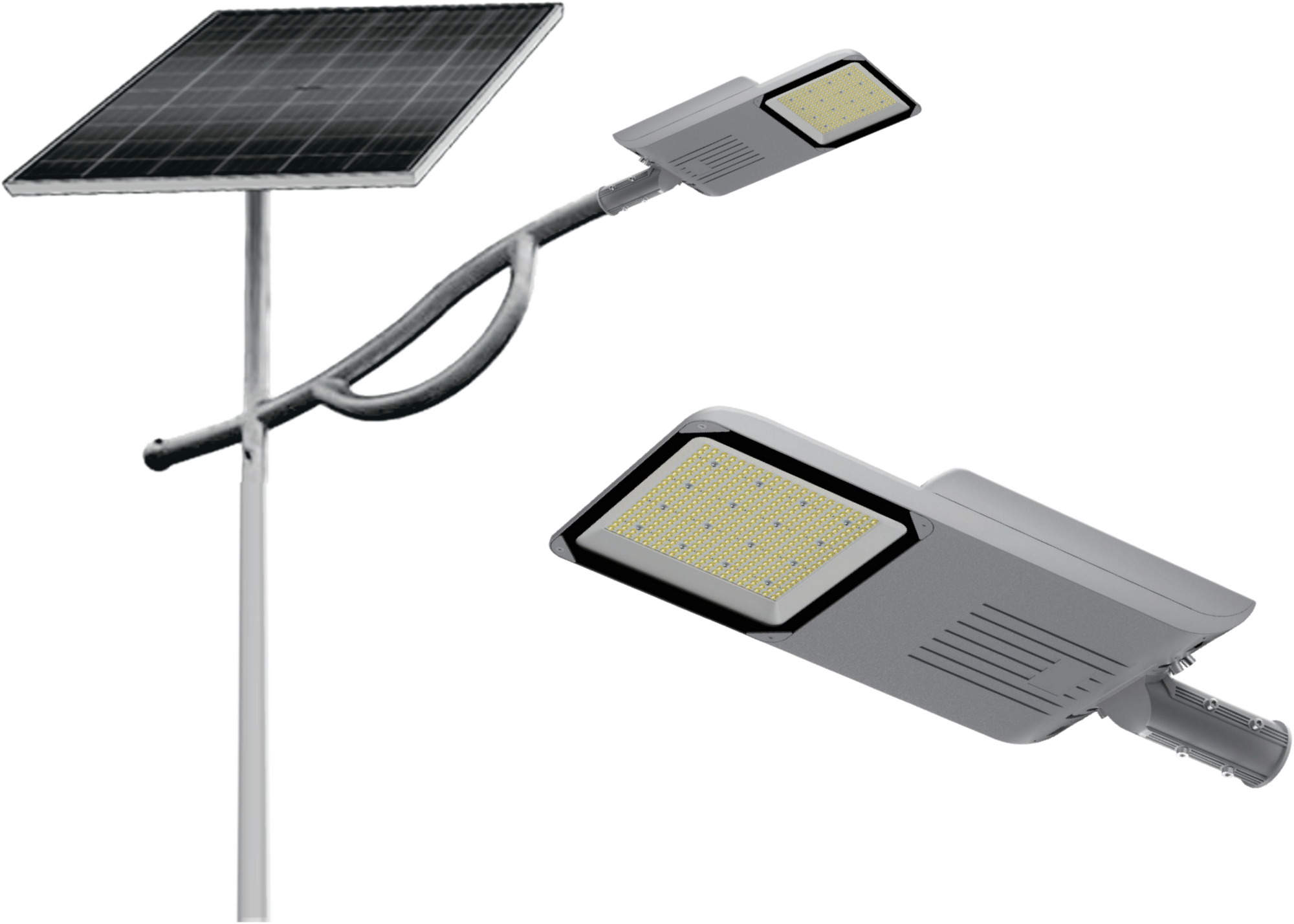

The split-type architecture decouples three problems most solar lights confuse — solar yield, battery thermal, and road-side photometry. Each is optimised independently. The panel is angled for latitude. The battery hangs where it is shaded and serviceable. The luminaire aims at the road, on the right pole, at the right tilt. The system is upgradeable, programmable, and built to outlast the pole.
The headline figures that put Integron Split-type on tendered municipal projects.
- 13-yr Battery life
- 5000+ Charge cycles
- 150 lm/W System efficacy
- 100K hrs System life
The completespecification.
01Electrical
- Wattage package
- 60–80 W · 80–100 W · 100–120 W · 120–150 W
- Charge controller
- Intelligent solar charge controller
- Controller type
- PWM · MPPT · PWM Hybrid · MPPT Hybrid
- Voltage range
- Light 36V / 48V · Battery 12V / 24V · PV 17–48V / 54–48V
- Lumen package
- >8,600 · >12,200 · >16,800 · >19,600 lm (6,550 – 42,990 lm available)
02Light
- System efficacy
- 140 – 150 lm/W
- Light source
- Lumileds 3030 2D
- LED efficiency
- Up to >200 lm/W
- CRI
- ≥ 70
- Beam angle
- Type II M 90° × 150° (other types available)
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- 50,000 hrs (L70 @ Ta = 35°C)
03Battery
- Capacity
- >576 · >768 · >1,075 · >1,228 Wh
- Type
- Lithium Iron Phosphate (LiFePO4)
- Cycles / life
- >4,000 cycles (up to 5,000) · up to 13 years
04Solar PV
- Panel wattage
- >150 · >200 · >250 · >300 W
- PV type
- Polycrystalline · Monocrystalline · Mono PERC
- Panel life
- > 10 years
05Environmental
- Mounting
- 48 – 60 mm pole, side entry
- Mounting height
- 6 – 10 m or 8 – 12 m
- Working temp.
- Light −40 °C to 55 °C · Battery 0 °C to 45 °C · Panel −40 °C to 85 °C
- Humidity
- Up to 95% RH
06Mechanical
- Housing
- High pressure die-cast aluminium
- Battery console
- Aluminium alloy
- Gasket
- Heat-resistant silicone rubber
- Front cover
- Tempered glass
- Finish
- Corrosion-resistant powder coating
From the grid's endto the village street.
- Battery
- LiFePO4 · 13 yrs
- Cycles
- > 4,000
- LED
- Lumileds 3030 2D
- Efficacy
- 150 lm/W
- Autonomy
- 3 – 5 nights
- Ingress
- IP65
Integron Split-type in the field
- 01
Off-grid roads
Where the grid stops, the pole keeps going.
- 02
Remote villages
Society streets that the utility never reached.
- 03
Border posts
Outposts that have to light themselves.
- 04
Eco-developments
Lit pathways without trenching the cable.
60150W
The range of Integron Split-type, by application.
- 0160 – 80 W
Residential streets, society interiors
- 0280 – 100 W
Secondary roads, society arterials
- 03100 – 120 W
Major roads, industrial estates
- 04120 – 150 W
Highways, off-grid expressways
