Fromperimetertopitch.
Security, perimeter and sports floodlighting — 7,000 to 56,000 lumens, beam configurable.
Light the whole field.
The configurable floodlight is specified where the area matters more than the angle — security perimeters, cricket grounds, sports pitches, building façades. The optic switches between 30°, 60°, 90° and asymmetric for the brief. Lumileds 3030 2D engines pull more than 195 lumens per watt from the package. Seven thousand to fifty-six thousand lumens on a yoke that aims once and holds.
The headline figures that put Fusion X Flood on tendered municipal projects.
- 56K lm Peak output
- 195 lm/W LED efficacy
- 120K hrs Rated life
- 150 km/h Wind survival
The completespecification.
01Electrical
- Wattage package
- 50 W · 100 W · 150 W · 200 W · 300 W · 400 W
- Range available
- 35 W – 400 W on request
- LED driver
- Vossloh-Schwabe · Suncome · XCHOLY · Philips
- Driver type
- Constant Current Programmable LED
- Voltage range
- 100 – 277 V · 50 / 60 Hz
- Power factor
- ≥ 0.95 nominal
- Drive current
- 100 mA – 700 mA
- Surge protection
- 10 kV dedicated SPD
02Light
- Lumen package
- 7,000 · 14,000 · 21,000 · 28,000 · 42,000 · 56,000 lm
- Lumen range
- 4,900 – 56,000 lm available
- System efficacy
- ≥ 140 lm/W
- LED efficiency
- ≥ 195 lm/W or ≥ 170 lm/W
- Light Output Ratio
- ≥ 85%
- Light source
- Lumileds 3030 2D / TYF-3030
- CRI
- ≥ 70
- Beam angle
- Type II M 90° × 150° (other types available)
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- > 50,000 hours (up to 120,000)
- Photometric data
- IES / LDT files available
03Environmental
- Installation
- Typical floodlight installation — yoke / bracket
- Working temp.
- −40 °C to 55 °C
- Wind survival
- Up to 150 km/h
- Humidity
- Up to 95% RH
04Mechanical
- Weight
- 1.5 / 2.0 / 3.5 / 5.0 / 5.5 / 7.5 kg by SKU
- Housing
- High pressure die-cast aluminium
- Gasket
- Heat-resistant silicone rubber
- Front cover
- Tempered glass
- Finish
- Corrosion-resistant powder coating
- Certifications
- CE LVD & CE EMC
- Classification
- IP66 / IK08
From perimeter wallto centre of the pitch.
- LED
- Lumileds 3030 2D
- Efficacy
- ≥ 195 lm/W
- Lifetime
- 50K – 120K hrs
- Surge
- 10 kV
- Wind
- 150 km/h
- Ingress
- IP66 / IK08
Fusion X Flood in the field
- 01

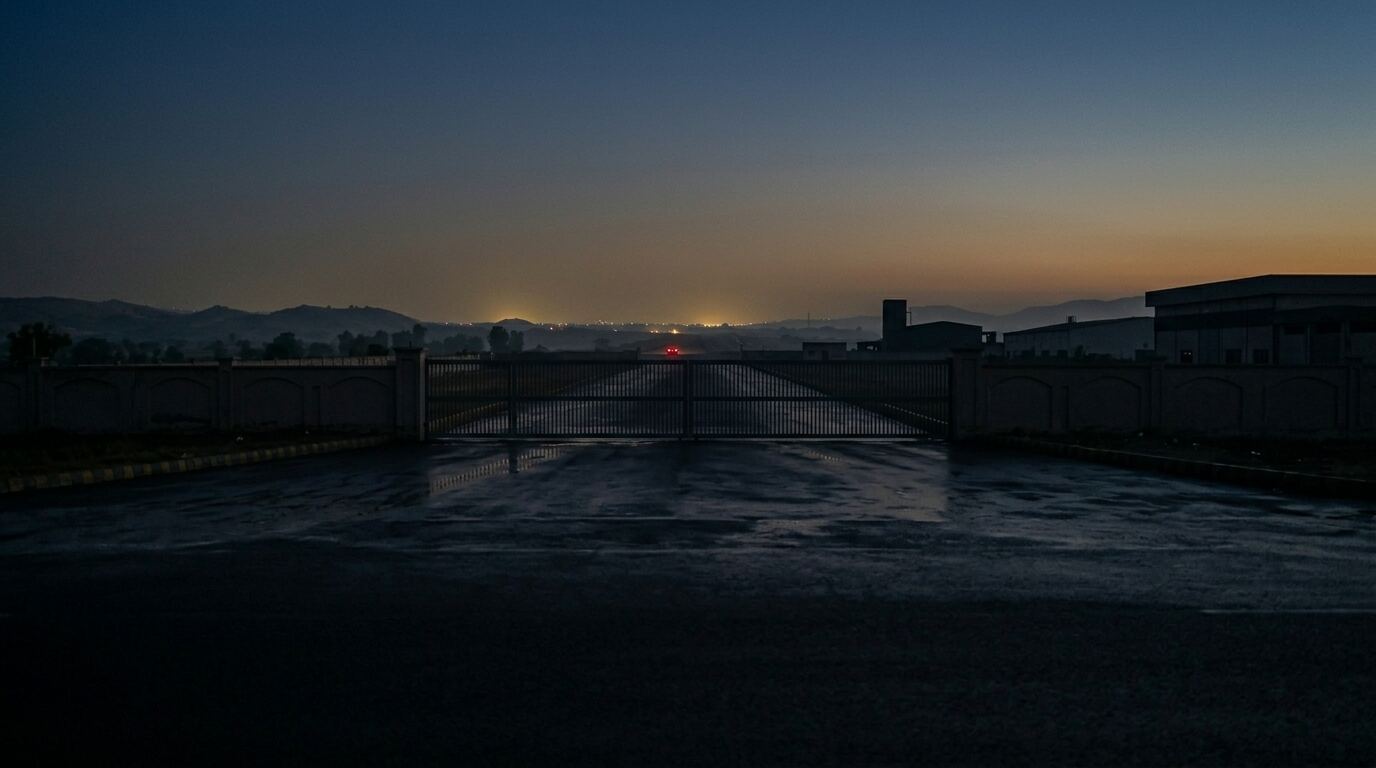

Security & perimeter
Boundary walls, yards, gate complexes.
- 02

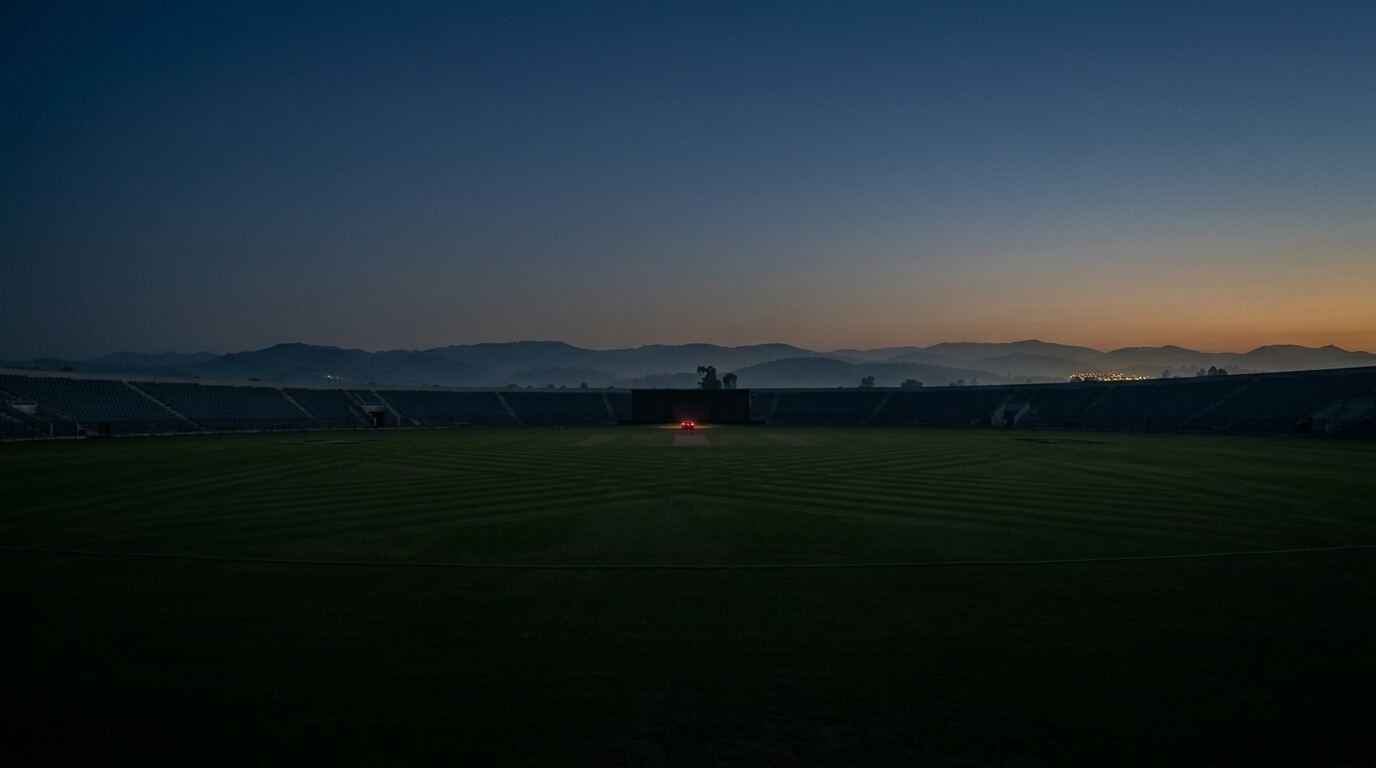

Sports grounds
Cricket pitches, football fields, school grounds.
- 03
Building façades
Architectural wash on industrial and civic frontages.
- 04
Public squares
Plazas, mosque forecourts, civic gathering areas.
50400W
The range of Fusion X Flood, by application.
- 0150 W
Security walls, gate complexes, yards
- 02100 W
Compound lighting, small façades
- 03150 W
Building façades, public squares
- 04200 W
Industrial yards, mid-size grounds
- 05300 W
Sports grounds, cricket pitches
- 06400 W
Stadiums, large arenas, pitch-flood
