Stadium-grade.
Broadcast-ready.

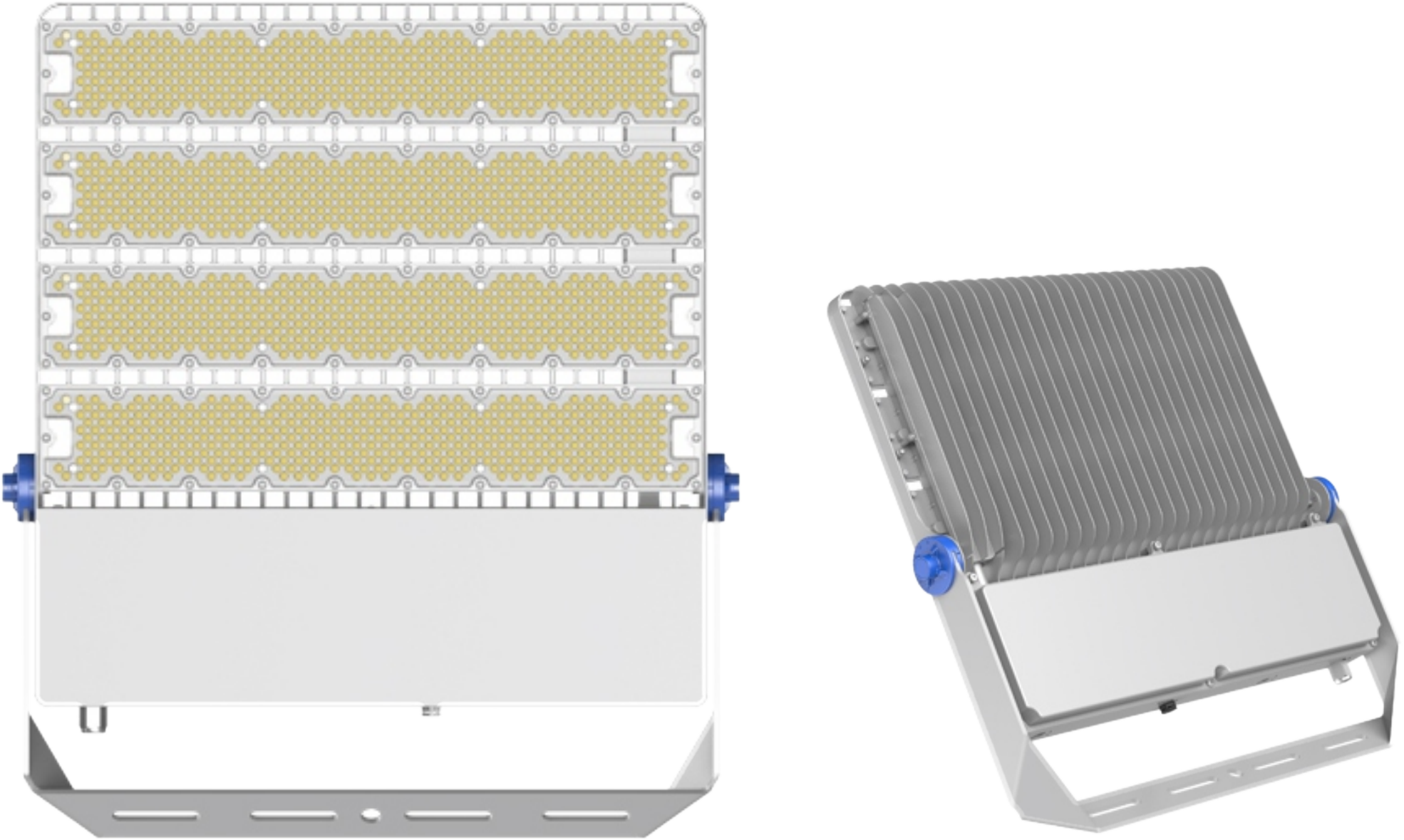

Stadium fixture platform with four beam optics, 5 SDCM colour consistency, 150,000-lumen peak.
Built for the broadcast.
The stadium fixture is engineered for international-standard pitches and broadcast-grade illumination. Four beam optics — 15°, 30°, 60° and 90° — let one fixture serve a narrow long-throw spotlight from the rim or a wide pitch wash from the lighting tower. Five-SDCM colour consistency keeps frame-to-frame colour stable for camera. Lumileds 3030 2D and TYF 3030 source options, programmable constant-current driver, an SPD-protected 10 kV surge bus, and a rust-free die-cast housing for coastal and humid sites.
The headline figures that put Axis Pro on tendered municipal projects.
- 150K lm Peak output
- 180 lm/W LED efficacy
- 5 SDCM Broadcast colour
- 50K hrs Rated life
The completespecification.
01Electrical
- Wattage
- 500 W · 750 W · 1000 W
- LED driver
- Sosen SS-240NL-E · Meanwell XLG 240 · Philips Xitanium XI (optional)
- Driver type
- Constant Current LED Driver
- Voltage range
- 90 – 305 V · 50 / 60 Hz
- Power factor
- ≥ 0.95 nominal
- Surge protection
- SPD 10 kV dedicated · 4 kV driver built-in
02Light
- Lumen package
- >75,000 · >112,000 · >150,000 lm
- System efficacy
- > 150 lm/W
- Light source
- TYF 3030 · Lumileds 3030 2D (optional)
- Source efficiency
- > 180 lm/W
- CRI
- 70
- Beam angle
- Extra Narrow 15° · Narrow 30° · Medium 60° · Wide 90°
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- > 50,000 hours (L70 B50)
- Colour consistency
- 5 SDCM
03Environmental
- Installation
- Typical flood bracket mounting
- Working temp.
- −40 °C to +50 °C ±10%
- Humidity
- > 95% RH
04Mechanical
- Dimensions (L × W × H) mm
- 610×500×80 · 610×590×80 · 690×610×80
- Weight
- 8.5 / 9.8 / 11.1 kg by SKU
- Housing
- High pressure die-cast aluminium (rust-free)
- Gasket
- Heat-resistant silicone rubber
- Lens / reflector
- Polycarbonate
- Finish
- Corrosion-resistant powder coating
- Certifications
- CE · ROHS · FCC
- Classification
- IP66 · IK08 front-cover strength
From the rim of the bowlto the centre of the pitch.
- LED
- Lumileds 3030 2D
- Source
- > 180 lm/W
- Lifetime
- 50,000 hrs
- Colour
- 5 SDCM
- Beams
- 15° / 30° / 60° / 90°
- Ingress
- IP66 / IK08
Axis Pro in the field
- 01
Cricket grounds
PCB regulation lux for first-class pitches.
- 02
Football pitches
International-standard wash from one tower.
- 03
Hockey & tennis
Tight glare control for faster sports.
- 04
Broadcast venues
5 SDCM colour stable for camera and replay.
5001000W
The range of Axis Pro, by application.
- 01500 W
Club grounds, mid-size stadia
- 02750 W
International pitches, broadcast venues
- 031000 W
Top-tier stadia, broadcast-mandate sites
